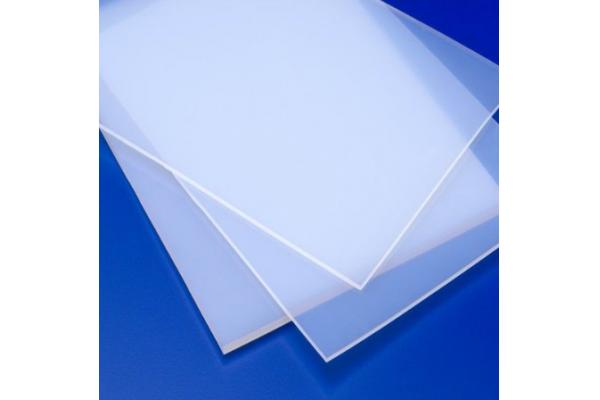

Non-Stick PFA Plastic Sheet Food Processing

Non-Stick PFA Plastic Sheet Food Processing

Product number:kaxite-s030

Quick Overview: PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin. is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description
Applications: Food Processing Density: 2.10 - 2.30g/cm³
Elongation: 150% Feature: Non-Stick
Product Name: PFA Plastic Sheet Tensile Strength: 15Mpa


Non-Stick PFA Plastic Sheet Food Processing , Teflon Pressing Sheet



Quick Detail:


1. Long Continuous lengths

2.Very high working temperatures

3. Non-stick characteristics

4.Low friction surface

5.Very high resistance to chemicals and solvents

6.Very high electrical resistance

7.Bio-compatibility

8.Welding and re-moulding potential



Description:


PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high

temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin.

is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction

of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.



Applications:


Heat exchangers

Laboratory applications

Semiconductor

Flow monitoring

Emissions monitoring

Double containment systems

Food processing

Electrical insulation

Automotive hose

Automotive paint spray



Specifications:


Property

Unit

Result

Appetent density

g/cm3

2.10—2.30

Tensile strength (min)

MPa

≥15.0

Ultimate elongation (min)

%

%150

Dialectic strength Dialectic strength

KV/mm

10


Length(mm)×Width(mm)

Thickness(mm)

Nominal

Tolerance

150×150

1.0-30

±0.30-±0.50

250×250

1.5-30

±0.30-±0.50

300×300

1.5-30

±0.30-±0.50

450×450

1.5-30

±0.30-±0.50

600×600

2-30

±0.30-±0.50

800×800

3-30

±0.30-±0.50

1000×1000

3-30

±0.30-±0.50

1200×1200

3-30

±0.30-±0.50

1000×2000

5-35

±0.30-±0.60

1500×1500

5-30

±0.30-±0.50

1800×1800

8-30

±0.30-±0.50

2000×2000

8-30

±0.30-±0.50



Remarks:


PFA sheet/PFA board are in available in other sizes and thickness according to customer's specific

requirements.



Competitive Advantage:


1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
