Feature: | Self Extinguishing | Type: | FEP Tubing |
---|---|---|---|
Product Name: | FEP Tubing | Tensile Strength: | 14Mpa |
Applications: | Ground Remediation | Density: | 2.14 - 2.17g/cm³ |

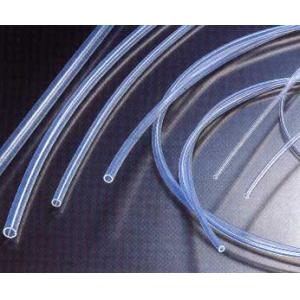

Industrial Fluorinated Ethylene Propylene Tube FEP Heat Shrink Tubing
Quick Detail:
Description:
FEP tube is slightly less chemically inert than PTFE but exhibits much lower diffusion through its wall
making it ideal for transporting aggressive gases for various forms of monitoring & analysis. A high
degree of optical clarity together with the very smooth internal surface of FEP tube make it the perfect
choice for sight-glasses & coloured paint delivery systems that require the liquid flow to be observed easily
without the inconvenience of internal residue build-up.
FEP Tubing is also available in coiled tubing that can be ordered in various sizes, lengths, special sizes
and colors to meet your needs
Applications:
Specifications:
Main properties
Indicator |
Unit |
Indicator figure |
|
||
density |
g/cm3 |
2.14-2.17 |
Tensile strength |
Mpa |
14 |
Ultimate elongation |
% |
175 |
Temperature range |
°C |
- 200-200 |
Dielectricity strength |
Kv/mm |
15 |
Ordinary Tube |
|||
external diameter* internal diameter (mm) |
maximum length (m) |
external diameter* internal diameter (mm) |
maximum length (m) |
φ2*φ1.6 |
300 |
φ16*φ13 |
30 |
φ3*φ2.2 |
250 |
φ16*φ14 |
30 |
φ4*φ3.2 |
200 |
φ20*φ16 |
20 |
φ5*φ4 |
200 |
φ20*φ18 |
20 |
φ6*φ3 |
200 |
φ25*φ21 |
20 |
φ6*φ4 |
200 |
φ25*φ22 |
20 |
φ6*φ5 |
200 |
φ32*φ28 |
6 |
φ8*φ6 |
50 |
φ32*φ29 |
6 |
φ8*φ7 |
50 |
φ36*φ32 |
6 |
φ10*φ7 |
50 |
φ36*φ30 |
6 |
φ10*φ8 |
50 |
φ40*φ34 |
6 |
φ10*φ9 |
50 |
φ40*φ36 |
6 |
φ12*φ10 |
50 |
φ50*φ46 |
6 |
φ12*φ11 |
50 |
φ60*φ54 |
6 |
φ16*φ12 |
30 |
φ80*φ70 |
6 |
Precision Piping |
Capillary |
|||
external diameter* internal diameter (mm) |
external diameter* internal diameter (mm) |
(mm) |
internal diameter (mm) |
length
|
1.78/1.28 |
4.50/3.74 |
0.9 |
0.5 |
200-500 |
1.94/1.28 |
4.70/3.74 |
1 |
0.6 |
|
2.16/1.50 |
5.00/4.12 |
1.1 |
0.7 |
|
2.56/1.90 |
5.00/4.24 |
1.2 |
0.8 |
|
2.62/1.98 |
5.24/4.24 |
1.3 |
0.9 |
|
2.62/2.06 |
5.34/4.58 |
1.4 |
1 |
|
3.00/2.44 |
5.70/4.94 |
1.5 |
0.9 |
|
3.53/2.83 |
6.00/5.24 |
1.6 |
1 |
|
3.53/2.93 |
6.26/5.24 |
1.6 |
1.2 |
|
4.50/3.64 |
6.99/5.99 |
1.8 |
1.4 |
|
1.9 |
1.5 |
Remarks:
We can also produce FEP tubing in other sizes and thickness according to customer's specific requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
