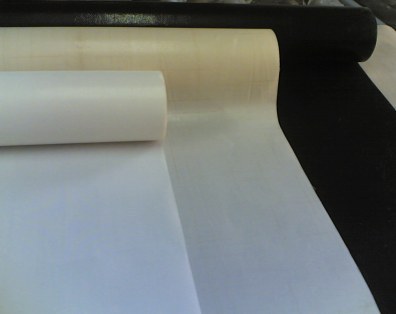

Carbon Filled PTFE Porous Membrane Polytetrafluoroethylene Sheet
Quick Detail:
1. Minimal Water Absorption
2. Excellent Machining
3. Acid and chemical resistant
4. Good Electrical insulation
5. High working temperatures
6. Low friction
7. Low minimum order quantity
8. Good services
Description:
PTFE micro-porous membrane
Gives excellent wind-proof,water-resistant,warmth-keeping,breathable and stable per
PTFE micro-porous membrane is produced by special dual-elongation process to get the light-weight and
pliable film whose thinckness is 0.025mm,opening rate is 82%,and the maximum diameter of the pore is
0.2.These are about nine million pores per square inch ,and the diameter is 20 times bigger than the one
of the molecular of water,20 thousand times smaller than the drop of water,which gives the film exellent
wind-proof,water-resistant,warm-keeping ,breathable and stable performance.So the film is the right
material to make high-class laminated fabric.
Meanwhile,it is also widely used in the construction and water treatment fields for it has the excellent
water-resistant ability special micro-porous structure.The film meets the requirement of the standard
of "Q/HS004-2000 PTFE Flim Standard".
PTFE Membrance can be used with just about every filter medium. Acrylic,PPS, P84 and Nomex all can be
coated eptfe membrance as base filter media
PTFE micro-porous membrane for air filter.Space rate is about 82%, average hole diameter is about
0.3μm.The membrance has special functions of high Breathability excellent chemistry stability ,small friction
quotiety high temperature resistness etc. After laminated with the PP, PET & other non-woven fabrics,
the dust clear rate could be above 99.99%. It’s the best choice for any kind of High Efficiency Particulate
Air Filter.
Applications:
1. Gement,
2. metallurgy,
3. chemistry,
4. dyestuff,
5. electric power,
6. petroleum,
7. pharmaceutical
8. tobacco,
9. foodstuff processing ,etc
Specifications:
|
Project
|
Units
|
Orientation film
|
Semi-directed film
|
Non-directional membrane
|
|
Tensile Strength ≥
|
MPa
|
≥30
|
≥20
|
≥10
|
|
Elongation ≥
|
%
|
≥30
|
≥60
|
≥100
|
|
1MHzDielectric loss
angle tangent
|
|
2.5×10-4
|
/
|
/
|
|
1MHz Permittivity
|
|
Average 1.8-2.2
|
/
|
/
|
|
DC Wear-voltage strength
(room temperature)
|
KV/m
|
Average 200
Minimum 40
|
Average 60 Minimum6
|
Average30
|
Remarks:
Teflon PTFE film is available in other sizes and thickness according to customer's requirement.
You may interested in our other PTFE products just like PTFE skived film, PTFE seal and PTFE sheet,
PTFE rod,PTFE tube etc.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
