Applications: | Power Plant | Color: | Red |
---|---|---|---|
Feature: | Anti-Corrosion | Length: | 100 - 4000mm |
Product Name: | PTFE Teflon Tube | Temp: | 10°C - 25°C |

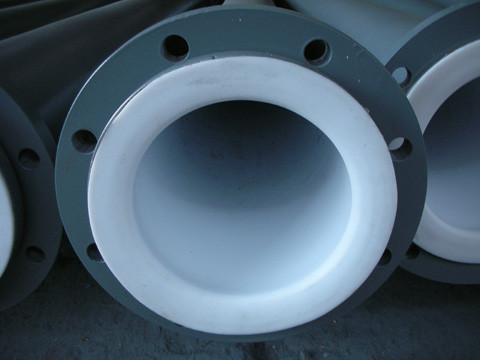

Anti-Corrosion PTFE Teflon Tube / PTFE Lined Pipe Power Plant
Quick Detail:
1. Excellent physical properties;
2. Good anti-corrosion;
3. Same mechanical strength with steel pipe;
4. Sanitary, non-toxic, non-fouling and non-breeding;
5. Resistance to chemical corrosion, marine bio-corrosion, and resistance to cathodic stripping;
6. Skilled and convenient Installation process;
7. Good weather resistance, and adapt to the severe environment of desert, saline aquifers and so on;
8. Smooth inside wall, high efficient transportation and long life-span.
Description:
PTFE Teflon lining pipe is a kind of steel pipe which lined the quality plastic against the inner wall of the
steel pipe. By the ordinary steel material as the steel pipe, and excellent plastic with abrasive resistance,
anticorrosion, heat-resistance and so on as a lining layer, we combine the characteristics of metal and
plastic together, into the characteristics with high strength, high abrasive resistance, high anticorrosion
and high heat-resistance. It has both the mechanical properties of steel pipe and the characteristics of
anticorrosion, scale formation resistance of plastic pipe. Teflon lined pipe is the perfect pipeline to carry
sour, alkali, salt, corrosive gas and other media. The pipe with lined food-grade PP can be used in food,
medicine and drinking water industry. Usually plastic lined pipe has PP lined pipe(GSF.PP), PVC lined
pipe(GSF.PVC), PE lined pipe(GSF.PE), PO lined pipe(GSF.PO), PTEF lined pipe(GSF.F4) and so on.
Therefore it can be widely used for the pipeline system of industrial deslagging, exhaust in metallurgy,
mining, electric undertaking, chemical industry and so on.
Applications:
1. It can be widely used in the system of media transportation and pro-environment treatment in Chemical
industry, power plant, metallurgy, food industry etc.
2. It can be used on the project for drinking and water supply and sewerage works.
Specifications:
Nominal Size |
F |
C |
t |
L(Min.) |
L(Max.) |
G.W.(kg) |
||
Inch |
mm |
Standard wall |
Heavy wall |
|||||
1" |
25 |
48 |
10 |
3 |
4 |
100 |
4000 |
2.99xM+1.8 |
1-1/2" |
40 |
68 |
10 |
3 |
4 |
100 |
4000 |
4.84xM+3.1 |
2" |
50 |
87 |
10 |
3 |
4 |
150 |
4000 |
6.47xM+4.6 |
2-1/2″ |
65 |
100 |
15 |
3 |
4 |
150 |
4000 |
9.2xM+6.5 |
3" |
80 |
117 |
15 |
3 |
5 |
150 |
4000 |
12.83xM+8.7 |
4" |
100 |
151 |
15 |
3.5 |
5.5 |
150 |
4000 |
18.46xM+12.4 |
5" |
125 |
175 |
15 |
3.5 |
5.5 |
150 |
4000 |
26.5+14 |
6" |
150 |
203 |
20 |
4.5 |
6.5 |
150 |
4000 |
32.91xM+17.6 |
8" |
200 |
256 |
20 |
4.5 |
8.5 |
200 |
4000 |
48.72xM+26.8 |
10" |
250 |
311 |
25 |
5 |
9 |
200 |
4000 |
50.60xM+37.5 |
12" |
300 |
365 |
25 |
5 |
10 |
200 |
4000 |
60.30xM+62 |
Remarks:
PTFE Teflon lining pipe is available in variety of widths, lengths to meet your specific requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
