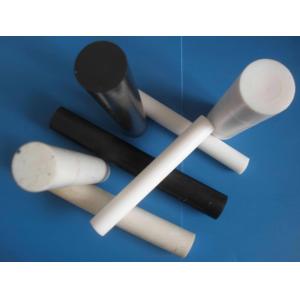

100mm Width Black Teflon Rods

Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications

Property

Unit

Result

Apparent Density

g/cm3

2.10-2.30

Tensile Strength ≥

MPa

≥14

Crack Elongation ≥

%

≥150

Working Temperature

°C

-180°C ~ + 260°C

Diameter(mm)

Length(mm)

Norminal

Tolerance

Norminal

Tolerance

4,5,6

+0.480

100

+5.0

7,8,9

+0.580

100

+5.0

10,13,15,16,18

+1.100

100,1000

+3.60

20,25,30

+1.130

100,1000,3000

+3.60

35,40,45,50

+1.600

100,1000,3000

+3.60

55,60,65,70,75,80,85,90,100

+2.000

100,1000,3000

+2.50

110,120,130,140,150

+2.500

100,1000,3000

+2.50

180,200,250,270,300,500

+3.000

100,1000,3000

+2.00
